Surface 604 Werk
Surface 604 Werk
Couldn't load pickup availability

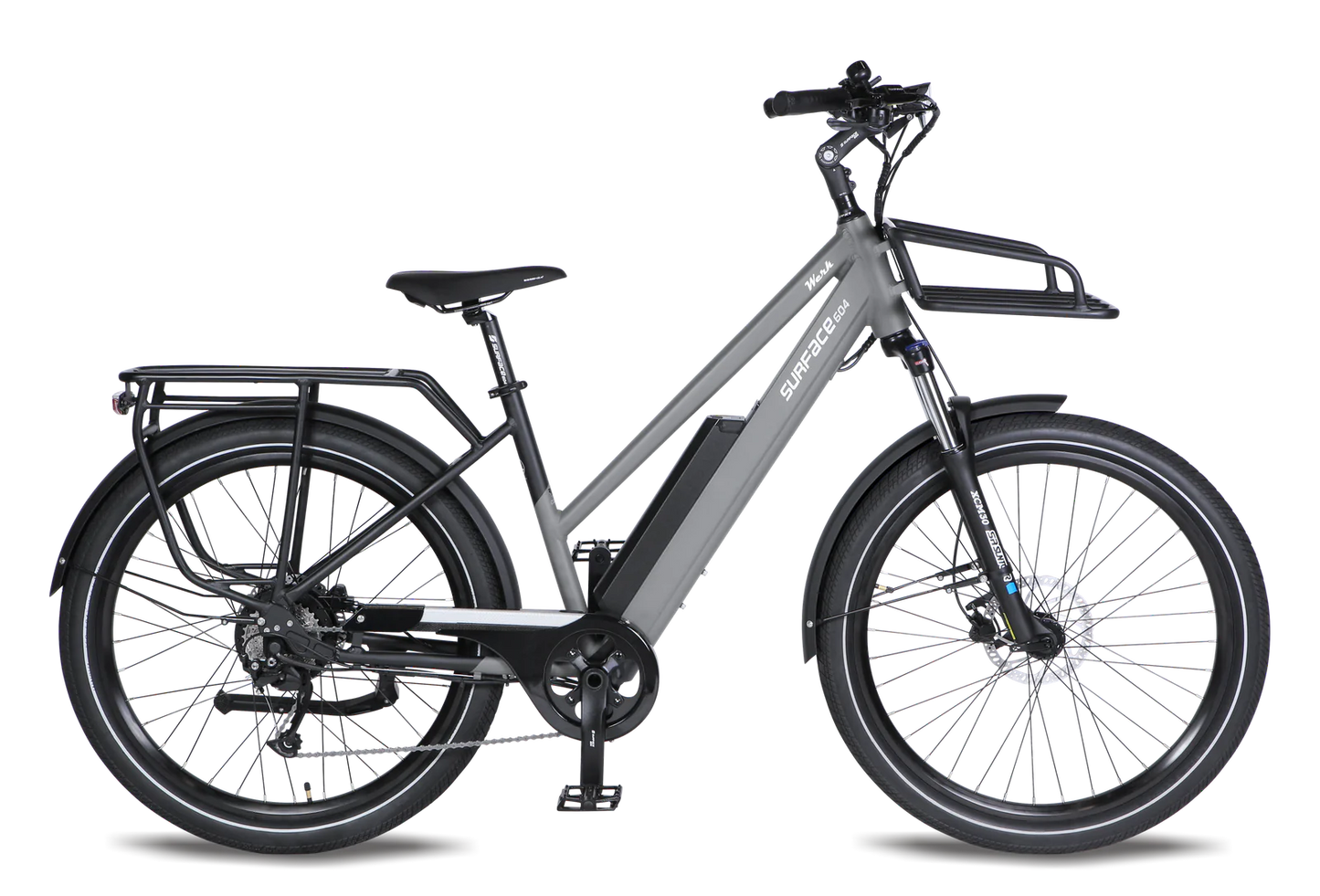

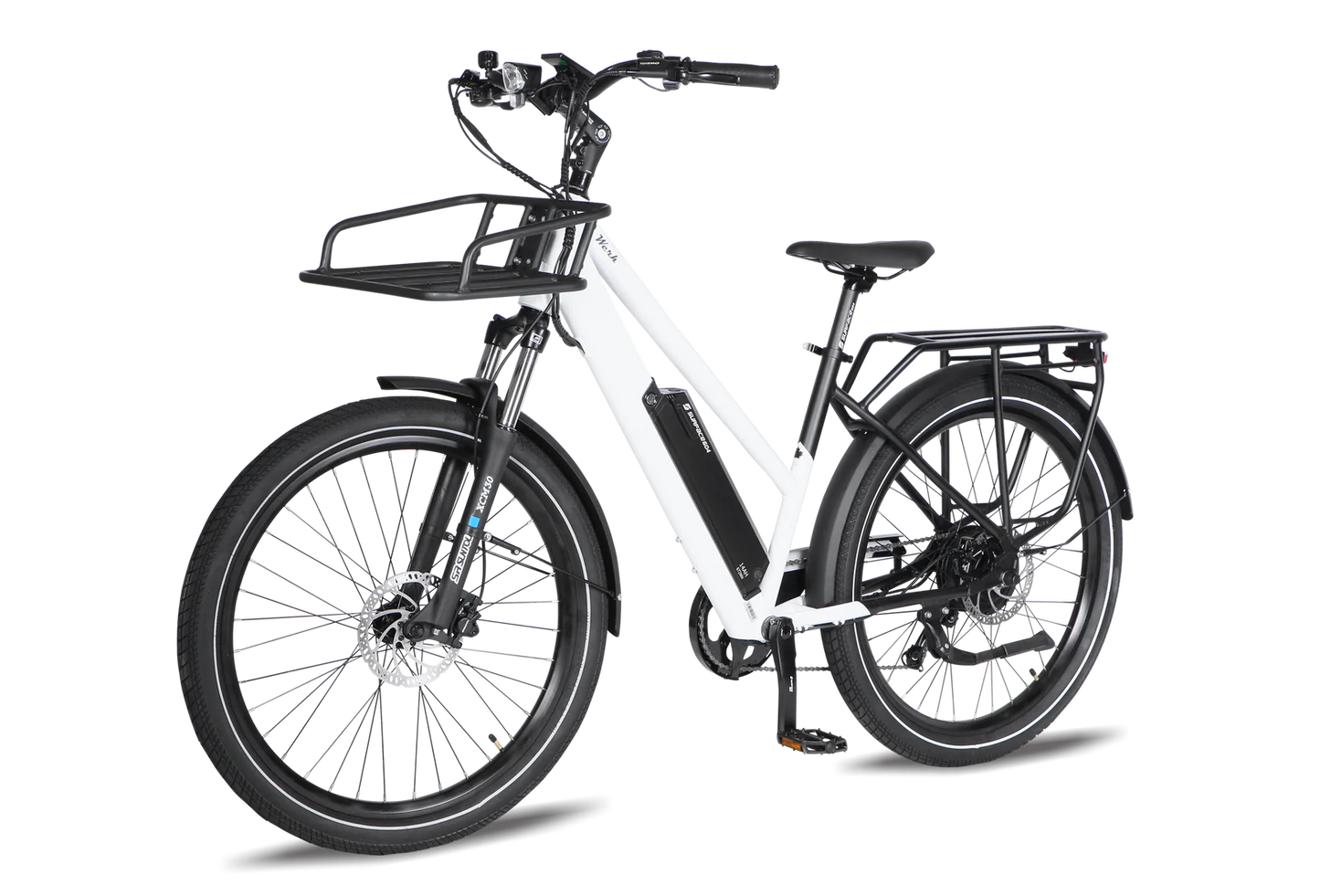

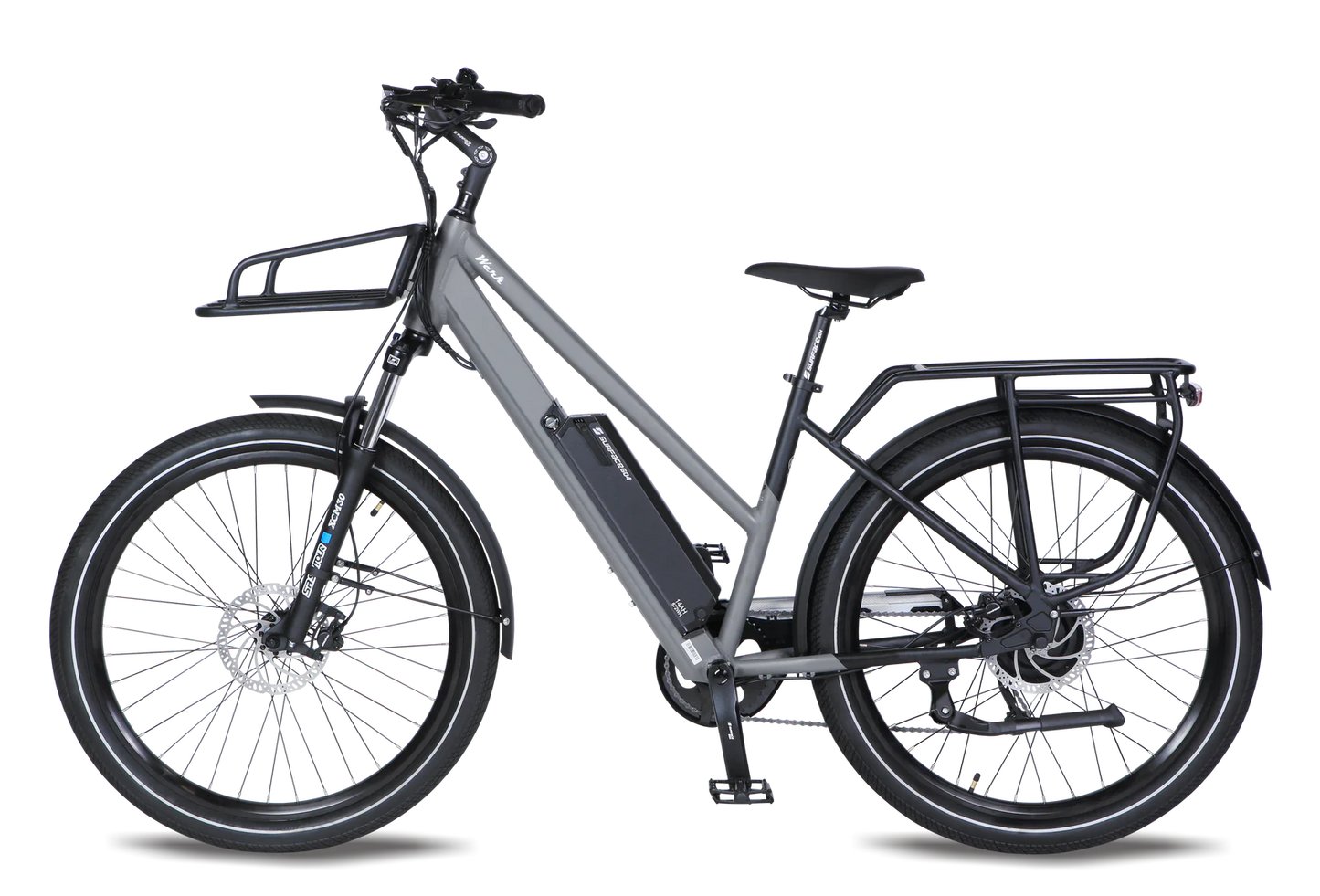

The Surface 604 Werk electric bicycle boasts large front and rear racks, perfect for carrying all your cargo needs. With a top speed of 32km/h and a range of up to 105km, you can confidently ride around town without worrying about range or speed limitations. Take on any adventure with the Surface 604 Werk.
Specifications
MOTOR
500W Bafang Geared Hub Brushless Motor
DRIVE MODE
Drop Out Torque Sensing Pedal Assist with a Throttle
TORQUE
65Nm of Torque
THROTTLE
Thumb Push Activated Throttle
CONTROLLER
SURFACE 604 Designed 12 MOS 48V 500W 25Ah, Smart Controller
TOP SPEED
32kmh, Comes as Class 2
BATTERY
Included: 48V 20Ah / 960Wh
Samsung lithium-ion 21700 cells
BATTERY RANGE
Up to 105km with a 48V20Ah Battery
BATTERY CHARGE TIME
3-4 Hours for a Full Charge from Empty
DISPLAY TYPE
SURFACE 604 Color LCD Display with USB Jack
Bigger display: 3.5" for 2024
LIGHTS
BÜCHEL "Secu Forte" LED Head Light with 150 lumens and BÜCHEL Rear LED light
FORK
SR SUNTOUR XCM 27.5, 80mm with Axle Thru Hub
MOTOR WIRE HARNESS
30Ah, can handle up to 120C current (upgraded)
DERAILLEUR
SHIMANO ALIVIO 9-Speed
CASSETTE
SHIMANO 12-34T Cassette
SHIFT LEVERS
SHIMANO ALIVIO 9-Speed
BRAKES
TEKTRO Auriga Hydraulic Disc Brakes
Post Mount, with Motor Inhibitors
CRANK SET
SAMOX 42T Front Sprocket
ROTORS
180mm Front/Rear x 2.34mm Thick
BOTTOM BRACKET
SAMOX Sealed Bottom Bracket
FRAME TYPE
Straight steerer Headtube, Custom Reinforced Battery Mounts, Internal Cable Routing, Post Mount Brakes
FRAME MATERIAL
6061 Aluminum Alloy
STEM
SATORI Up2+, Adjustable
HANDLEBAR
PROMAX Aluminum, 30mm Rise With 15° Backsweep
720mm Wide
PEDALS
WELLGO Platform, with Die Casting Body
CHAIN
KMC 9-Speed
SEAT POST DIAMETER
30.4mm
SADDLE
Selle Royal Gel Saddle "Essenza Plus"
with elastomer (Relaxed)
suitable for City/Tour use
FLEXITE shell features a unique indented structure,
adding superb flexibility and shock absorption
Adjustable up to 9 degrees.
RIMS
Aluminum Alloy Double Wall Rim, 27.5”x13Gx36H
FRONT HUBS
Surface 604 Aluminum
KICKSTAND
Adjustable Heavy-Duty Aluminum
STAND OVER HEIGHT
Adjustable to the Height of The Rider “One Size Fits All”
RECOMMENDED RIDER HEIGHT
For Riders: M/L 5’7” - 6’6”
NET WEIGHT (INCLUDING BATTERY)
90 lbs (20AH)
BATTERY WEIGHT
20AH battery 10lbs
WEIGHT CAPACITY
285lbs
STANDARD FEATURES
Welded Rear Rack, Adjustable Kickstand
Chain Guard, Front Rack Mount, Water Bottle Bosses
OPTIONAL UPGRADE FEATURES
NCX Suspension Seat Post
AVAILABLE COLOUR OPTIONS
Available in black or white
