Surface 604 V-Rook
Surface 604 V-Rook
Couldn't load pickup availability

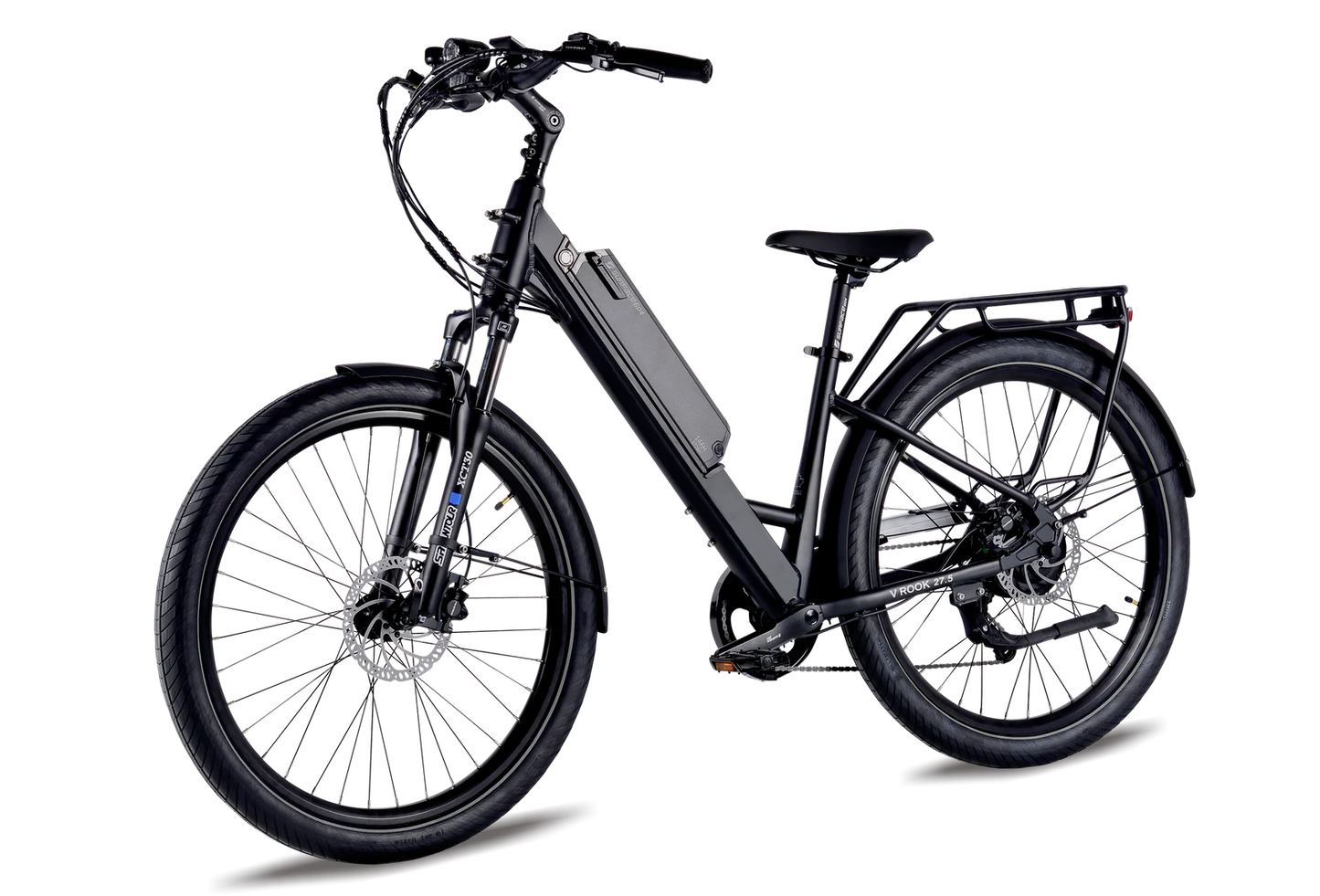

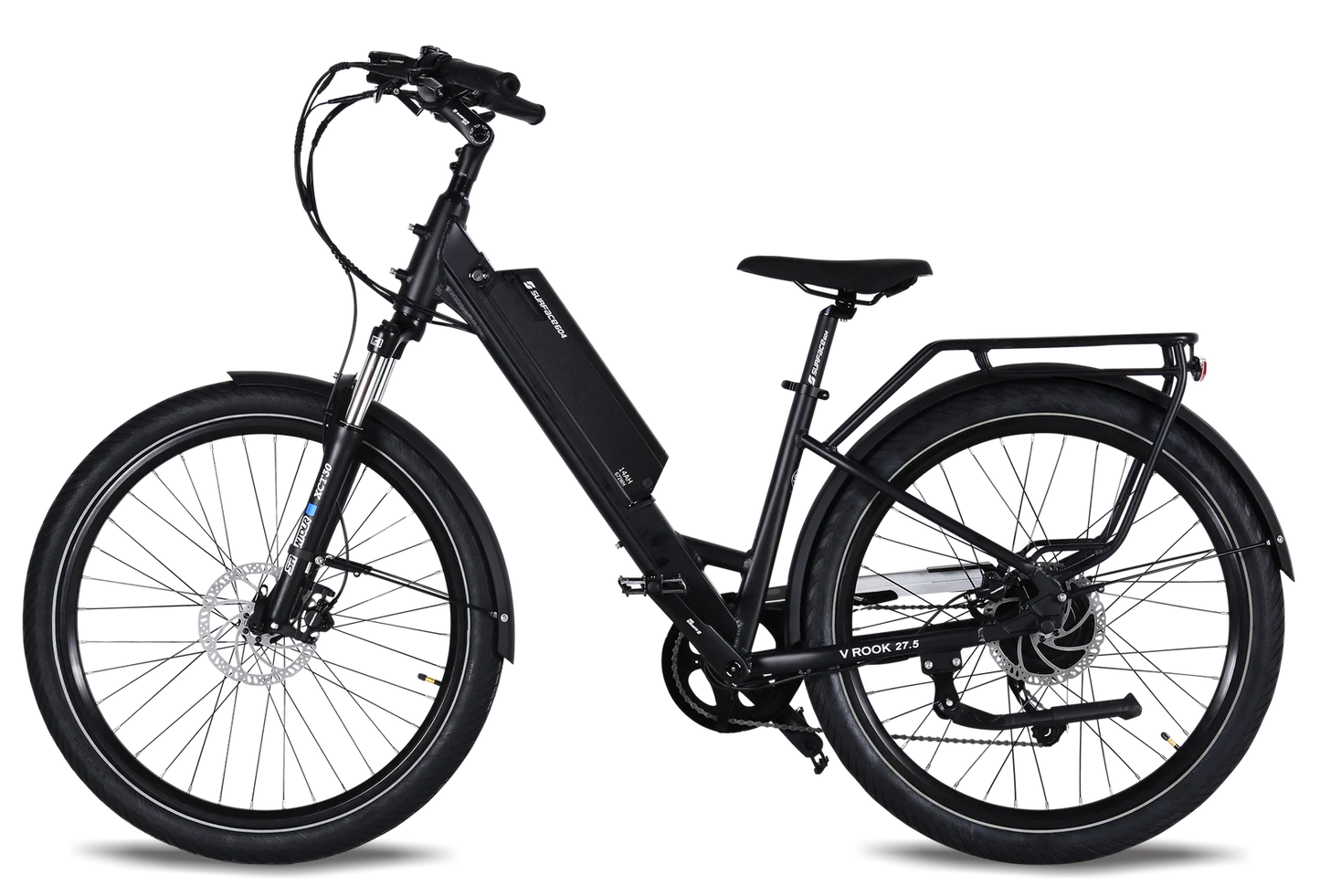

The Surface 604 V-Rook is an expertly designed electric bike, reaching a top speed of 32km/h for a smooth and efficient ride. Its step-through frame makes it easy to mount and dismount, while the 20ah battery provides an impressive range of 105km. Equipped with front and rear racks, this e-bike is perfect for your everyday commute or leisurely adventures.
Specifications
MOTOR
500W Bafang Geared Hub Brushless Motor
DRIVE MODE
Drop Out Torque Sensing Pedal Assist with a Throttle
TORQUE
65Nm of Torque
THROTTLE
Thumb Push Activated Throttle
CONTROLLER
SURFACE 604 Designed 12 MOS 48V 500W 25Ah, Smart Controller
TOP SPEED
32kmh, Comes as Class 2
BATTERY
Included: 48V 20Ah / 960Wh
Samsung lithium-ion 21700 cells
BATTERY RANGE
Up to 105km with a 48V20Ah Battery
BATTERY CHARGE TIME
3-4 Hours for a Full Charge from Empty
DISPLAY TYPE
SURFACE 604 Color LCD Display with USB Jack
Bigger display: 3.5" for 2024
LIGHTS
BÜCHEL "SHINY 120" front headlight / Rear LED light
FORK
SR SUNTOUR XCM 27.5, 80mm with Axle Thru Hub
MOTOR WIRE HARNESS
30Ah, can handle up to 120C current (upgraded)
DERAILLEUR
SHIMANO ALIVIO 9-Speed
CASSETTE
SHIMANO 11-36T Cassette
SHIFT LEVERS
SHIMANO ALIVIO
BRAKES
TEKTRO Auriga Hydraulic Disc Brakes
Post Mount, with Motor Inhibitors
CRANK SET
SAMOX 42T Front Sprocket
ROTORS
180mm Front/Rear x 2.34mm Thick
BOTTOM BRACKET
SAMOX Sealed Bottom Bracket
FRAME TYPE
Straight steerer Headtube, Custom Reinforced Battery Mounts
Internal Cable Routing, Post Mount Brakes
FRAME MATERIAL
6061 Aluminum Alloy
STEM
SATORI Up2+, Adjustable
HANDLEBAR
PROMAX Aluminum, 30mm Rise With 45° Backsweep, 710mm Wide
PEDALS
WELLGO Platform, with Die Casting Body
CHAIN
KMC 9-Speed
SEAT POST DIAMETER
30.4mm
SADDLE
Selle Royal Gel Saddle "Essenza Plus"
with elastomer (Relaxed)
suitable for City/Tour use
FLEXITE shell features a unique indented structure,
adding superb flexibility and shock absorption
Adjustable up to 9 degrees.
WHEELS/TIRE
27.5" X 2.4" Custom S604 Tires With Puncture Protections
3mm “Green Shield” technology, 40% more puncture proof then regular tire
RIMS
Aluminum Alloy Double Wall Rim, 27.5”x13Gx36H
FRONT HUBS
Surface 604 Aluminum
KICKSTAND
Adjustable Heavy-Duty Aluminum
STAND OVER HEIGHT
Small-Medium: 28.5”
Medium-Large: 30”
RECOMMENDED RIDER HEIGHT
Frame Sizes: S/M - 17.5", M/L - 19.5"
For Riders: S/M 5’2”-5’7”, M/L 5’8” - 6’6”
NET WEIGHT (INCLUDING BATTERY)
61lbs (20AH)
BATTERY WEIGHT
20AH battery 10lbs
WEIGHT CAPACITY
285lbs
STANDARD FEATURES

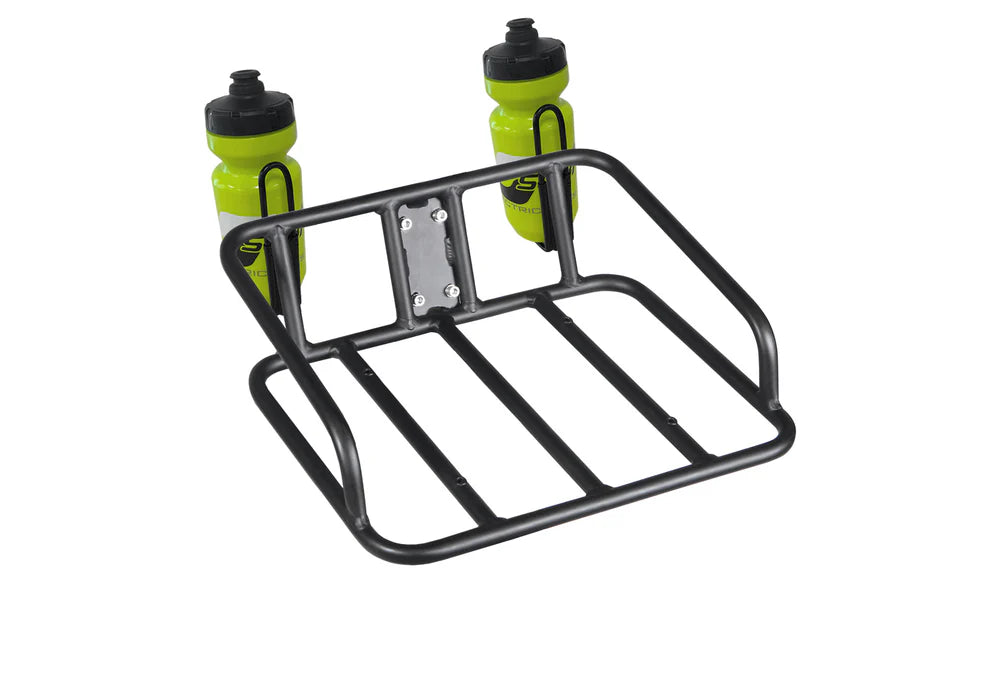

Welded Rear Rack, Adjustable Kickstand, Water Bottle Bosses
OPTIONAL UPGRADE FEATURES
NCX Suspension Seat Post
AVAILABLE COLOUR OPTIONS
Available in pink, grey, or black
