E-Bike Express
Surface 604 Twist
Surface 604 Twist
Couldn't load pickup availability

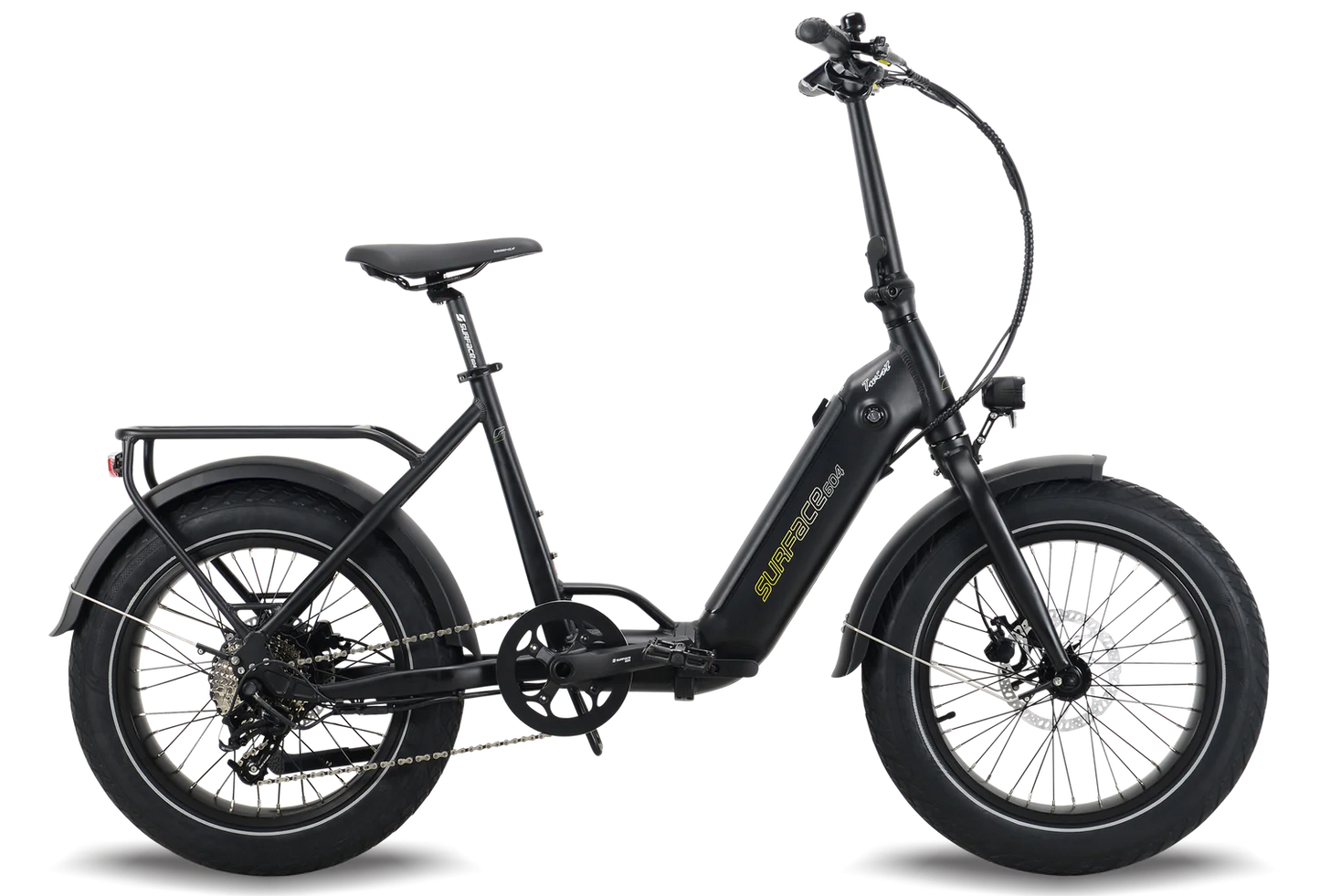

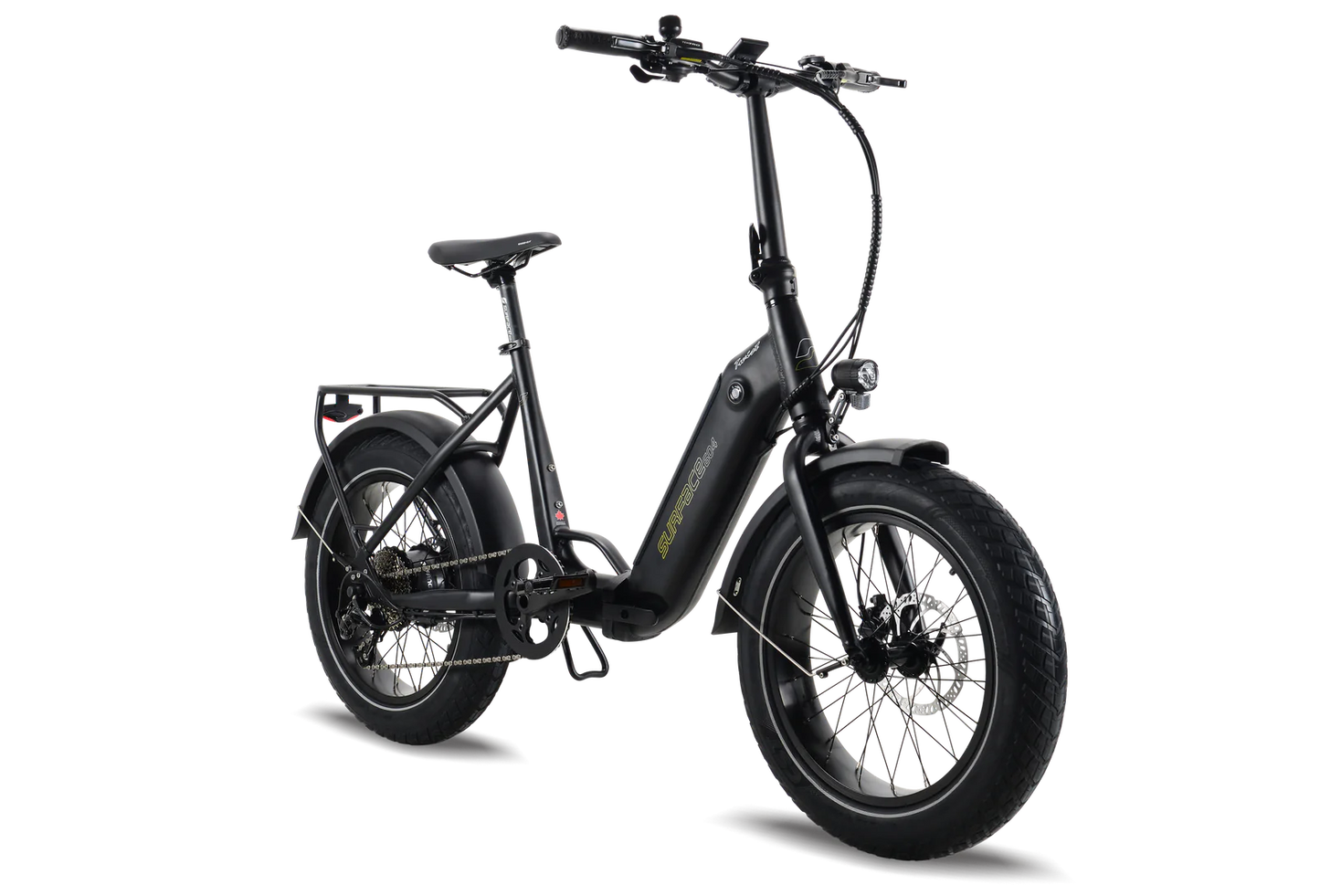

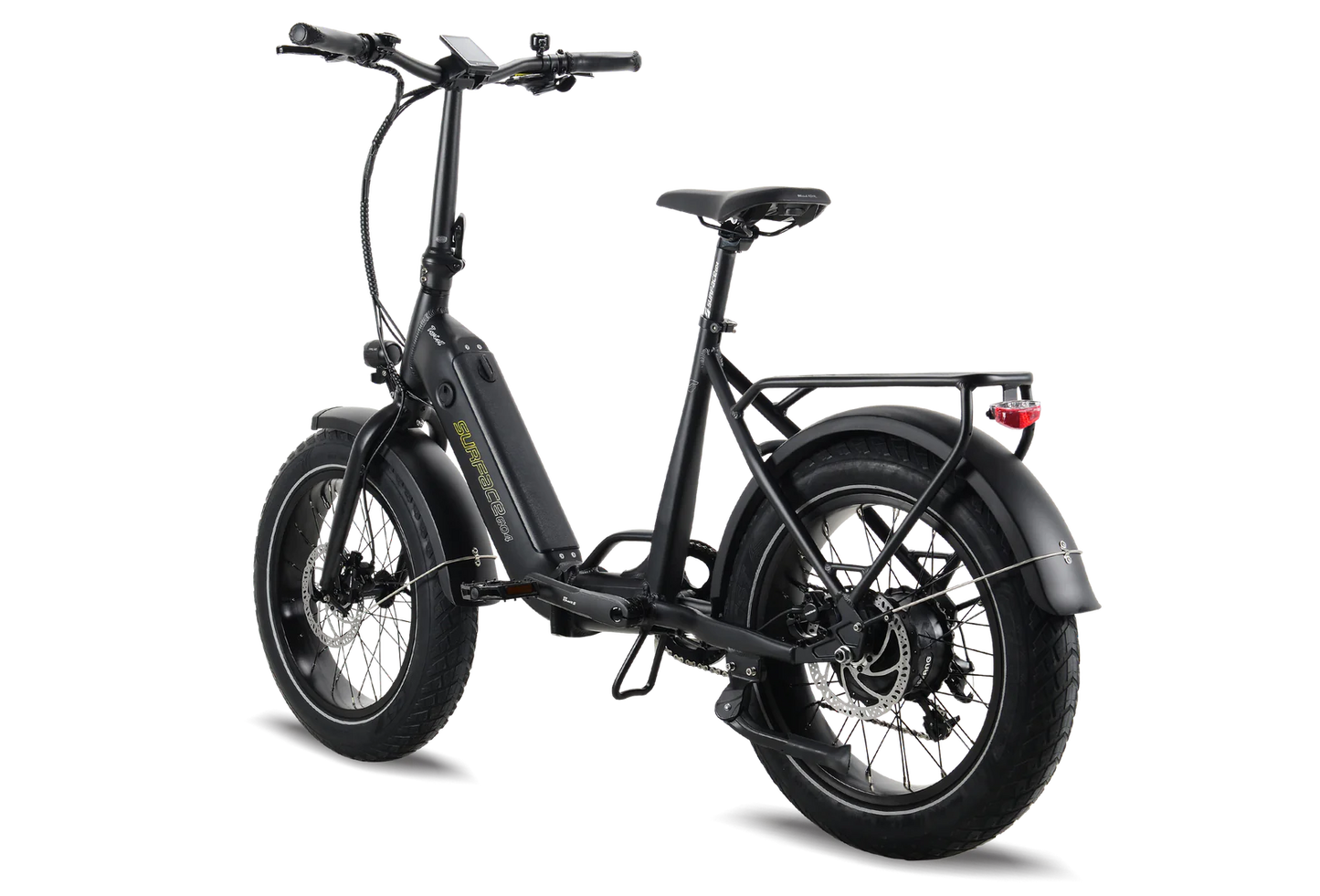

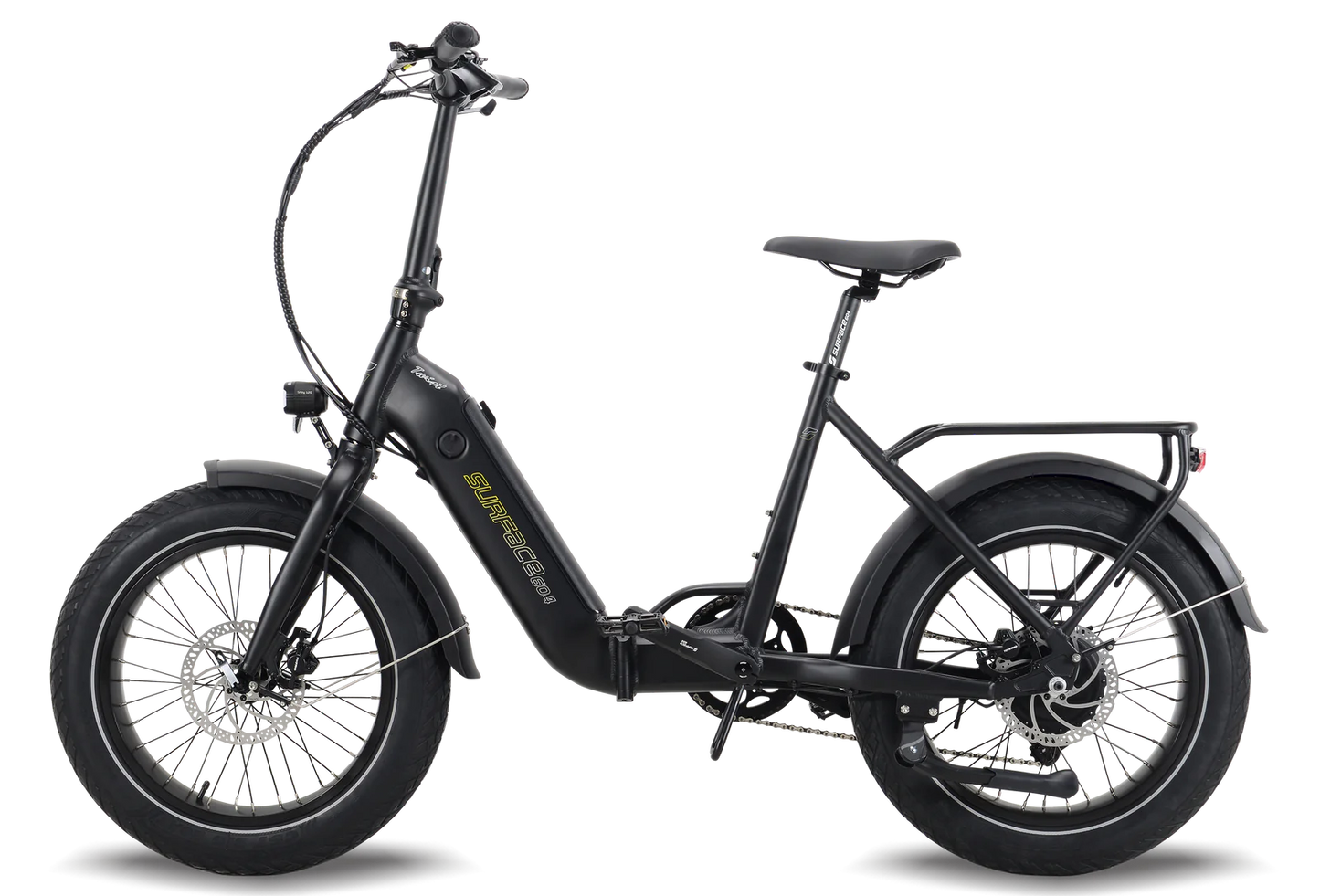

Introducing the Surface 604 Twist, a folding electric bicycle that combines convenience and speed with a top speed of 32km/h. With a range of 75km, it's perfect for commuting or weekend adventures. Plus, the included rear rack adds extra versatility for carrying your belongings. Take your rides to the next level with this innovative and efficient e-bike.
Specifications
MOTOR
500W Bafang Geared Rear Hub Brushless Motor
DRIVE MODE
Drop Out Torque Sensing Pedal Assist with a Throttle
TORQUE
80Nm of Torque
THROTTLE
Thumb Push Activated Throttle
CONTROLLER
SURFACE 604 Designed 12 MOS 48V 500W 25Ah, Smart Controller
TOP SPEED
32kmh, Comes as Class 2
BATTERY
Included: 48V 14Ah / 672Wh
Samsung Lithium-Ion 18650 Cells - Integrated
BATTERY RANGE
Up to 72km with a 48V14Ah Battery
BATTERY CHARGE TIME
3-4 Hours for a Full Charge from Empty
DISPLAY TYPE
SURFACE 604 Color LCD Display with USB Jack
Bigger display: 3.5" for 2024
LIGHTS
BÜCHEL "SHINY 120" LED Headlight / Rear LED Light
FORK
Rigid Cruiser Front Fork
MOTOR WIRE HARNESS
30Ah, can handle up to 120C current
DERAILLEUR
Short Cage SRAM X5 Groupset - 9 Speed
CASSETTE
X5 12-36T
44T Chainring
SHIFT LEVERS
SRAM X5 Trigger Shift
BRAKES
TEKTRO Auriga Hydraulic Disc Brakes
Post Mount, with Motor Inhibitors
CRANK SET
SAMOX 38T Front Sprocket, 170mm Crank Arms
ROTORS
180mm Front/Rear x 2.34mm thick
BOTTOM BRACKET
SAMOX Sealed Bottom Bracket
FRAME TYPE
Folding, Low Step Thru Geometry,
Internal Cable Routing, Post Mount Brakes
FRAME MATERIAL
6061 Aluminum Alloy
STEM
Folding Stem
PEDALS
WELLGO Platform, with Die Casting Body
CHAIN
KMC 9-Speed
SEAT POST DIAMETER
30.4mm
SADDLE
Selle Royal Gel Saddle "Essenza Plus"
with elastomer (Relaxed)
suitable for City/Tour use
FLEXITE shell features a unique indented structure,
adding superb flexibility and shock absorption
Adjustable up to 9 degrees.
WHEELS/TIRE
CST BIG BOAT 20” X 4.00 Tires, All Purpose
RIMS
Aluminum Alloy Double Wall Rim
FRONT HUBS
Surface 604 Aluminum
KICKSTAND
Adjustable Heavy-Duty Aluminum
STAND OVER HEIGHT
16.5"
RECOMMENDED RIDER HEIGHT
For Riders: 5’2” - 6’6”
NET WEIGHT (INCLUDING BATTERY)
(Including Battery) 28.1 KG (62 LBS) and (Without Battery) 24.4 KG (53.8 LBS)
BATTERY WEIGHT
14AH battery 3.63KG/8.0lbs
WEIGHT CAPACITY
285lbs
STANDARD FEATURES
Adjustable Kickstand, Water Bottle Bosses
Welded Rear Rack, LED front and rear lights
OPTIONAL UPGRADE FEATURES
NCX Suspension Seat Post
AVAILABLE COLOUR OPTIONS

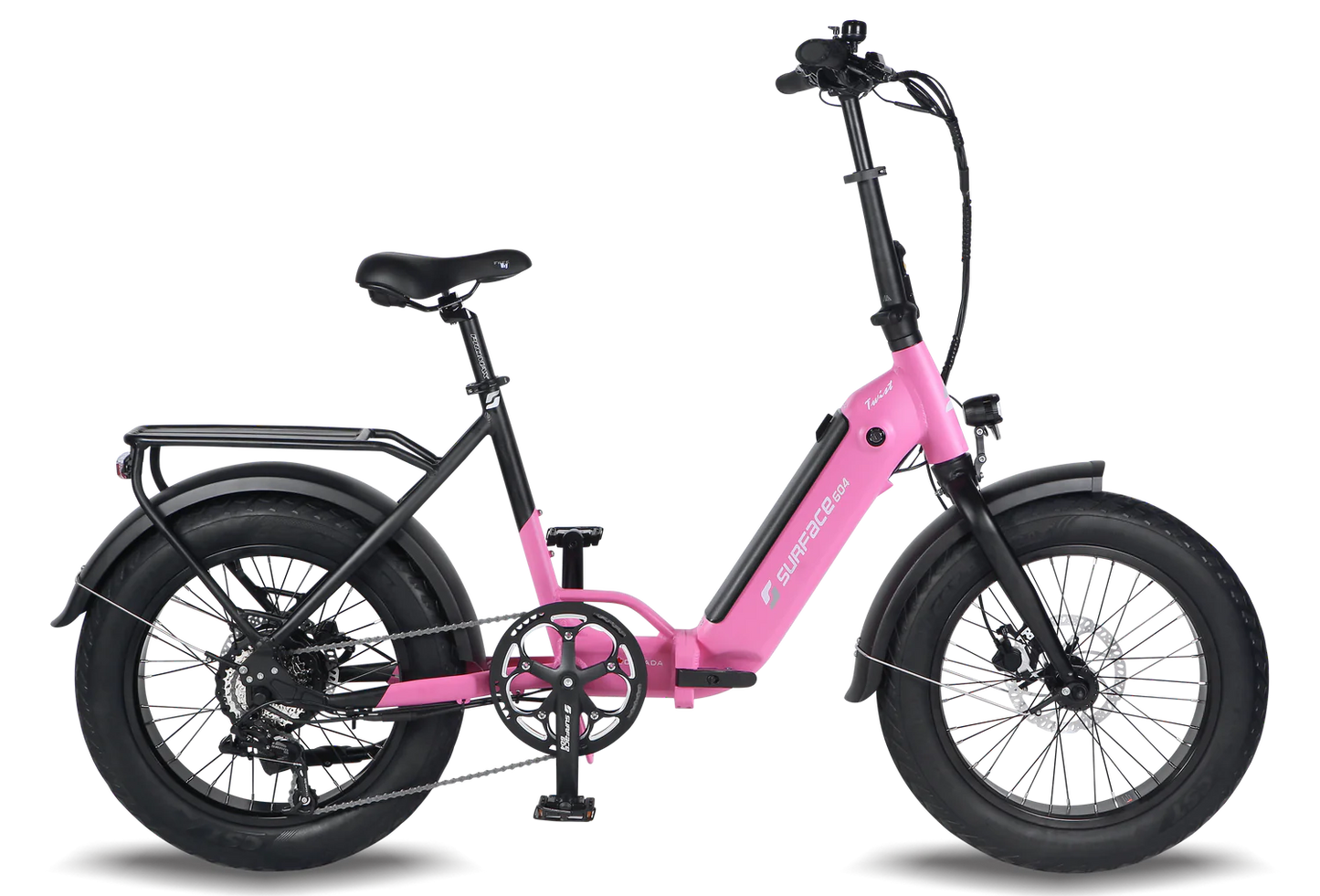

Available in pink, grey, or black
