Surface 604 Shred
Surface 604 Shred
Couldn't load pickup availability

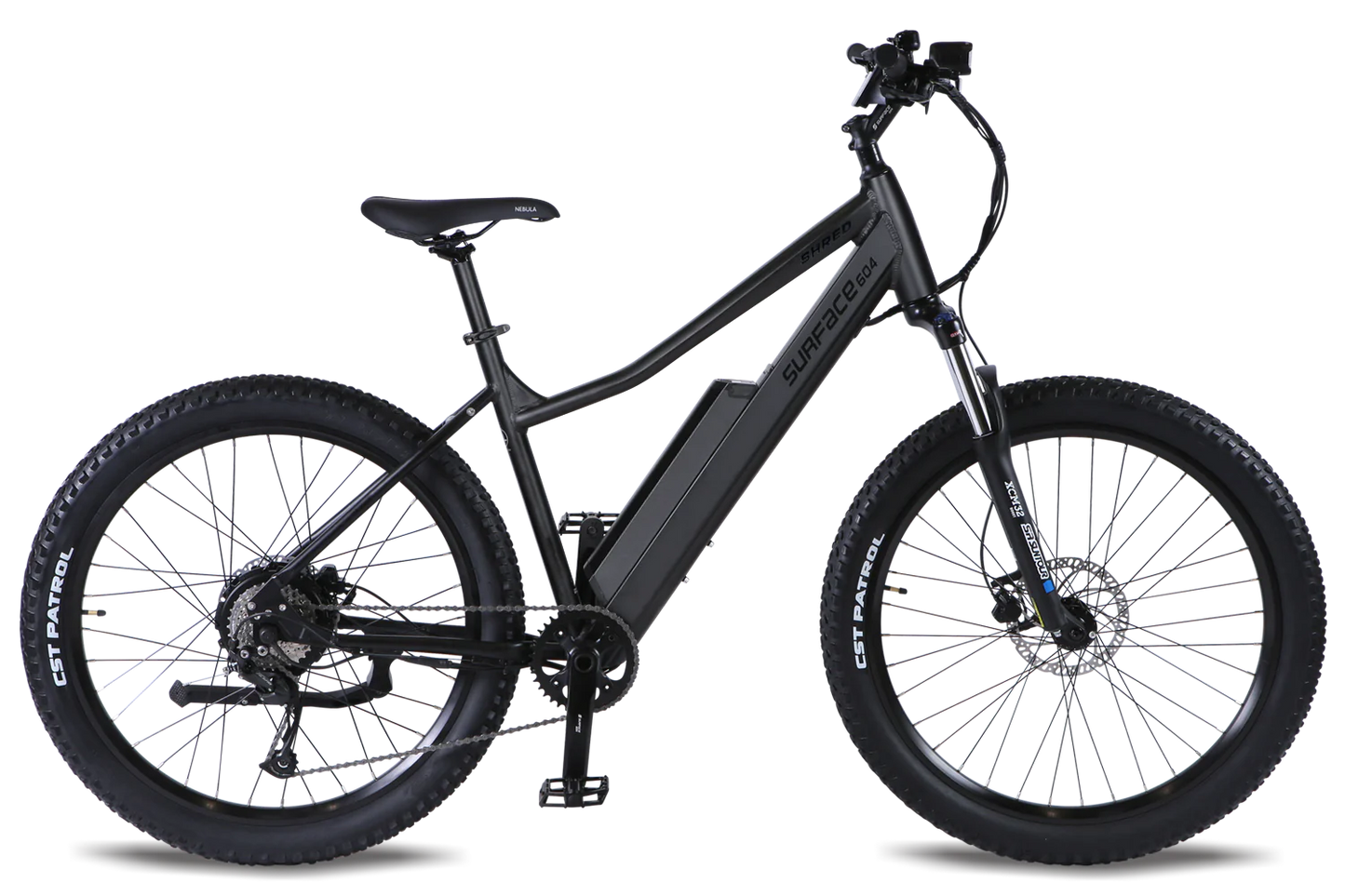

The Surface 604 Shred Electric bike features a powerful 500 watts motor and torque sensing pedal assist, providing a top speed of 32km/hr. With a range of 105km, it is the perfect choice for those looking for a reliable and efficient mode of transportation. Experience the benefits of effortless riding with the Surface 604 Shred.
Specifications
MOTOR
eMTB Specific 500W Bafang Geared Hub Brushless Motor
DRIVE MODE
Drop Out Torque Sensing Pedal Assist with a Throttle
TORQUE
65Nm of Torque
THROTTLE
Thumb Push Activated Throttle
CONTROLLER
SURFACE 604 Designed 12 MOS 48V 500W 25Ah, Smart Controller
TOP SPEED
32kmh, Comes as Class 2
BATTERY
Included: 48V 20Ah / 960Wh
Samsung lithium-ion 21700 cells
BATTERY RANGE
Up to 105km with a 48V20Ah Battery
BATTERY CHARGE TIME
3-4 Hours for a Full Charge from Empty
DISPLAY TYPE
SURFACE 604 Color LCD Display with USB Jack
Bigger display: 3.5" for 2024
LIGHTS
BÜCHEL "SHINY 120" front headlight with 120 lumens
Pre-Wired To Connect Rear Stop Light
FORK
SR Suntour XCM32 BOOST, 110mm Axle Thru Hub, 130mm travel
MOTOR WIRE HARNESS
30Ah, can handle up to 120C current
DERAILLEUR
SRAM X5 9-Speed 1-Piece Forged CNC with 2 Sealed Bearings
CASSETTE
SRAM 12-34T
SHIFT LEVERS
SRAM X5 Trigger Shift
BRAKES
TEKTRO E500, MTB Specific Hydraulic Disc Brakes
Post Mount, with Motor Inhibitors
CRANK SET
SAMOX 38T Front Sprocket, 170mm Crank Arms
ROTORS
180mm Front/Rear x 2.34mm Thick
BOTTOM BRACKET
SAMOX Sealed Bottom Bracket
FRAME TYPE
Tapered Headtube, Custom Reinforced Battery Mounts
Internal Cable Routing, Post Mount Brakes
FRAME MATERIAL
6061 Aluminum Alloy
STEM
Uno 40 degree Forged
HEAD SET
SAMOX Tapered with Sealed Bearings 1 1/8" - 1 1/2"
HANDLEBAR
PROMAX Aluminum, 30mm Rise With 9° Backsweep, 720mm Wide
PEDALS
WELLGO Platform, with Die Casting Body
CHAIN
KMC 9-Speed
SEAT POST DIAMETER
30.4mm
SADDLE
Selle Royal Gel Saddle "Essenza Plus"
with elastomer (Relaxed)
suitable for City/Tour use
FLEXITE shell features a unique indented structure,
adding superb flexibility and shock absorption
Adjustable up to 9 degrees.
WHEELS/TIRE
CST Patrol 27.5" x 2.8"
RIMS
Aluminum Alloy Double Wall Rim, 27.5″x13Gx36H
FRONT HUBS
1-Piece Forged CNC with 2 Sealed Bearings, Cro-Mo Axle and Alloy QR
KICKSTAND
Adjustable Heavy-Duty Aluminum
STANDOVER HEIGHT
Small-Medium: 28.5”
Medium-Large: 30”
RECOMMENDED RIDER HEIGHT
For Riders: S/M 5’2” - 5’7”, M/L 5’8” - 6’6”
Frame Sizes: S/M - 17.5", M/L - 19.5"
NET WEIGHT (INCLUDING BATTERY)
65lbs (20AH)
BATTERY WEIGHT
20AH battery 10lbs
WEIGHT CAPACITY
285lbs
STANDARD FEATURES
Adjustable Kickstand, Water Bottle Bosses
OPTIONAL UPGRADE FEATURES
Chain Guide, NCX Suspension
Seat Post, Rear Rack, Rear Led Light, Wren Inverted 110mm 4.82 Lbs Fork
