E-Bike Express

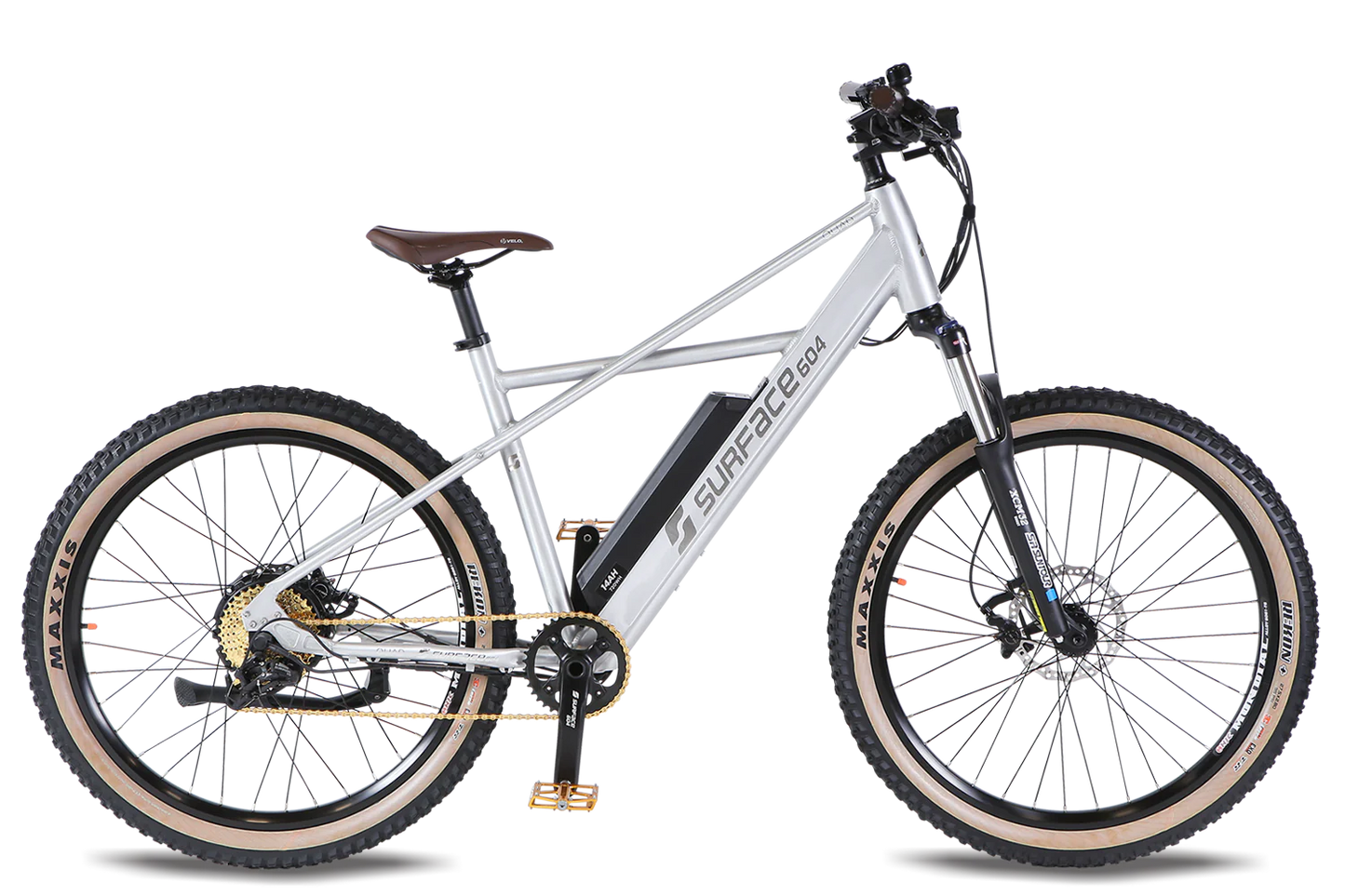

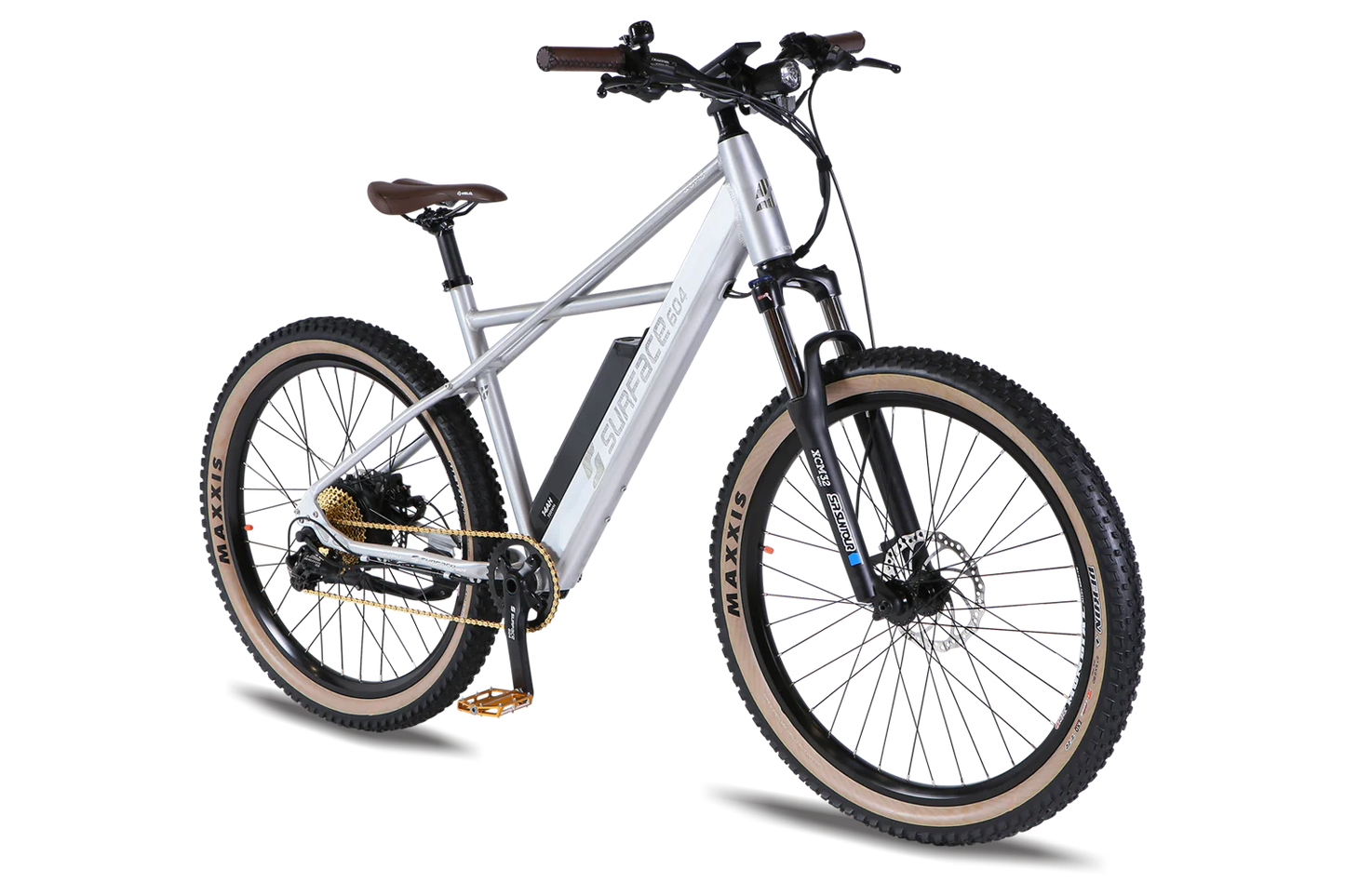

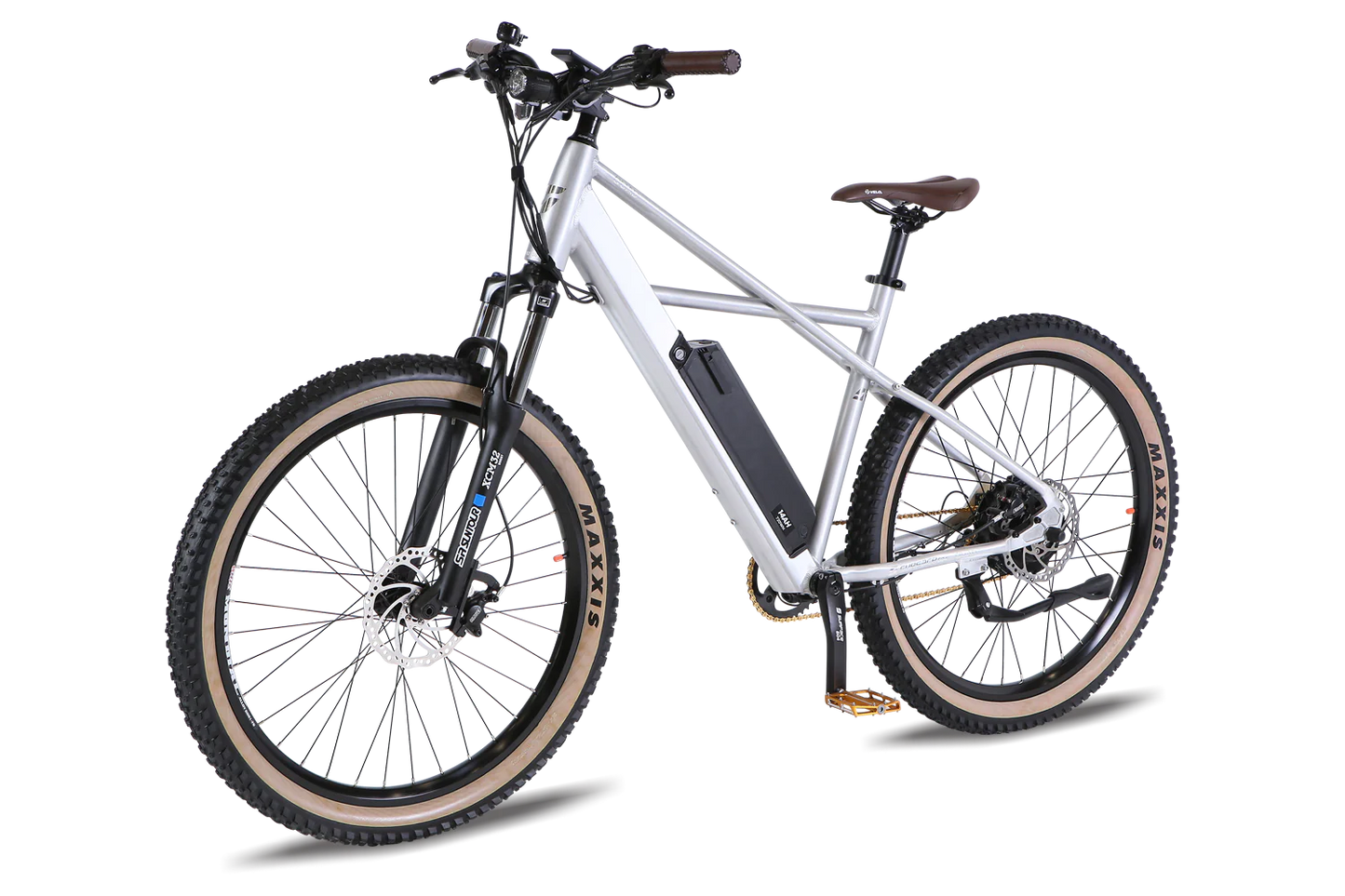

Surface 604 Quad
Surface 604 Quad
Couldn't load pickup availability
The Surface 604 Quad Electric Bicycle features a unique quad-shaped frame for a sleek and modern look. With a top speed of 32km/h, this bike allows for quick and efficient transportation. Its gold chain and pedal accents add a touch of luxury to your ride. Experience style and speed with the Surface 604 Quad.
Specifications
MOTOR
eMTB Specific 500W Bafang Geared Hub Brushless Motor
DRIVE MODE
Drop Out Torque Sensing Pedal Assist with a Throttle
TORQUE
65Nm of Torque
THROTTLE
Thumb Push Activated Throttle
CONTROLLER
SURFACE 604 Designed 12 MOS 48V 500W 25Ah, Smart Controller
TOP SPEED
32kmh, Comes as Class 2
BATTERY
Included: 48V 20Ah / 960Wh
Samsung lithium-ion 21700 cells
BATTERY RANGE
Up to 105km with a 48V20Ah Battery
BATTERY CHARGE TIME
3-4 Hours for a Full Charge from Empty
DISPLAY TYPE
SURFACE 604 Color LCD Display with USB Jack
Bigger display: 3.5" for 2024
LIGHTS
BÜCHEL "SHINY 120" front headlight with 120 lumens
Pre-Wired To Connect Rear Stop Light
FORK
SR SUNTOUR XCM 32. 29er, 100mm with Axle Thru Hub
MOTOR WIRE HARNESS
30Ah, can handle up to 120C current
DERAILLEUR
SRAM X5 9-Speed 1-Piece Forged CNC with 2 Sealed Bearings
CASSETTE
SRAM 12-34T
SHIFT LEVERS
SRAM X5 Trigger Shift
BRAKES
TEKTRO Dorado eMTB Specific Hydraulic Disc, Quad Piston, 180mm Rotor with Motor Inhibitors
CRANK SET
SAMOX 38T Front Sprocket, 170mm Crank Arms
ROTORS
180mm Front/Rear x 2.34mm Thick
BOTTOM BRACKET
SAMOX Sealed Bottom Bracket
FRAME TYPE
Straight steerer Headtube, Custom Reinforced Battery Mounts, Internal Cable Routing, Post Mount Brakes
FRAME MATERIAL
6061 Aluminum Alloy
STEM
eMTB specific Ergotec Bass 31.8mm
HEAD SET
SAMOX Tapered with Sealed Bearings 1 1/8" - 1 1/2"
HANDLEBAR
PROMAX Aluminum, 60mm Rise With 9° Backsweep and 720mm Wide
PEDALS
WELLGO Platform, with Die Casting Body, Gold Color
CHAIN
KMC 9-Speed, Gold Color
SEAT POST DIAMETER
30.4mm
SADDLE
SR Selle Royal "Nebula" High Density Silicon
Gel Royal GEL material soft and comfortable
WHEELS/TIRE
MAXXIS REKON+ 27.5” x 2.8” Skinwall tires (3C, Exo casing tech)
RIMS
Aluminum Alloy Double Wall Rim, 27.5″x13Gx36H
FRONT HUBS
1-Piece Forged CNC with 2 Sealed Bearings, Cro-Mo Axle and Alloy QR
KICKSTAND
Adjustable Heavy-Duty Aluminum
STAND OVER HEIGHT
Small-Medium: 28.5”
Medium-Large: 30”
RECOMMENDED RIDER HEIGHT
For Riders: S/M 5’2” - 5’7”, M/L 5’8” - 6’6”
Frame Sizes: S/M - 17.5", M/L - 19.5"
NET WEIGHT (INCLUDING BATTERY)
65lbs (20AH)
BATTERY WEIGHT
20AH battery 10lbs
WEIGHT CAPACITY
285lbs
STANDARD FEATURES
Adjustable Kickstand, Water Bottle Bosses, LED Headlight
OPTIONAL UPGRADE FEATURES
Chain Guide
NCX Suspension Seat Post, Metal Fenders, Rear Rack
Rear Led Light, WREN Inverted 110mm 4.82 Lbs Fork
