Surface 604 Boar Explorer
Surface 604 Boar Explorer
Couldn't load pickup availability

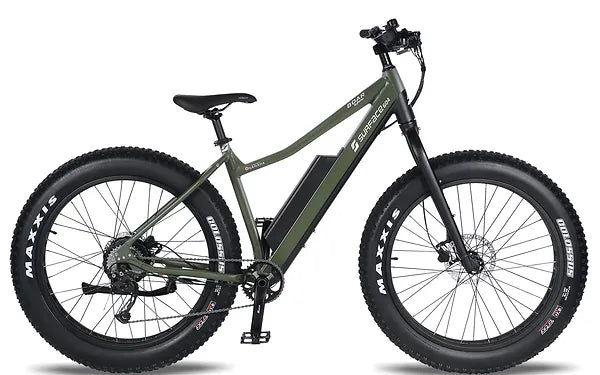

The Surface 604 Boar Explorer Electric Bicycle offers a top speed of 32km/h and a range of up to 105 km with its 20ah Samsung lithium ion battery. With its huge 27.5 x 4.5 fat tires, this electric bike provides stability and control for a smoother ride. Experience the convenience and ease of an electric bike without sacrificing performance.
Specifications
MOTOR
High Torque 500W Fat Bike Specific Bafang geared hub motor
DRIVE MODE
Drop Out Torque Sensing Pedal Assist with a Throttle
TORQUE
80Nm of Torque
THROTTLE
Thumb Push Activated Throttle
CONTROLLER
SURFACE 604 Designed 12 MOS 48V 500W 25Ah, Smart Controller
TOP SPEED
32kmh, Comes as Class 2
BATTERY
Included: 48V 20Ah / 960Wh
Samsung lithium-ion 21X700mm cells
BATTERY RANGE
Up to 105km with a 48V20Ah Battery
BATTERY CHARGE TIME
3-4 Hours for a Full Charge from Empty
DISPLAY TYPE
SURFACE 604 Color LCD Display with USB Jack
Bigger display: 3.5" for 2024
LIGHTS
BÜCHEL "SHINY 120" front headlight
FORK
Proprietary design, straight steerer
Custom 6061 Aluminum fork
MOTOR WIRE HARNESS
30Ah, can handle up to 120C current (upgraded)
DERAILLEUR
SHIMANO ALIVIO 9-Speed Drivetrain
CASSETTE
SRAM 9-Speed 11-34T
SHIFT LEVERS
SHIMANO ALIVIO
BRAKES
TEKTRO AURIGA Hydraulic Disc Brakes, Post Mount
180mm rotor with Motor Inhibitors
CRANK SET
SAMOX 36T front sprocket, 170mm crank arms
ROTORS
180mm Front/Rear x 2.34mm Thick
BOTTOM BRACKET
SAMOX Sealed Bottom Bracket
FRAME TYPE
Straight steerer Headtube, Custom Reinforced Battery Mounts, Internal Cable Routing, Post Mount Brakes
FRAME MATERIAL
6061 Aluminum Alloy
STEM
SURFACE 604 3D forged alloy
barbore 31.8mm, height 45mm (New)
HEAD SET
SAMOX Tapered with Sealed Bearings 1 1/8" - 1 1/2"
HANDLEBAR
PROMAX aluminum, 670mm wide, 6° sweep
35mm rise, 31.8mm clamp diameter
PEDALS
WELLGO Platform, with Die Casting Body
CHAIN
KMC 9-Speed
SEAT POST DIAMETER
30.4mm
SADDLE
SR Selle Royal "Nebula" High Density Silicon
Gel Royal GEL material soft and comfortable
WHEELS/TIRE
MAXXIS COLOSSUS 27.5" x 4.50", EXO Protection
Dual Compound, 1415g (per tire)
RIMS
27.5" X 100mm Single Wall Aluminum Alloy Rims With Cutouts
FRONT HUBS
Surface 604 Aluminum
KICKSTAND
Adjustable Heavy-Duty Aluminum
STAND OVER HEIGHT
Small-Medium: 28.5”
Medium-Large: 30”
RECOMMENDED RIDER HEIGHT
For Riders: S/M 5’2” - 5’7”, M/L 5’8” - 6’6”
Frame Sizes: S/M - 17.5", M/L - 19.5"
NET WEIGHT (INCLUDING BATTERY)
50lbs (20AH)
BATTERY WEIGHT
20AH battery 10lbs
WEIGHT CAPACITY
Rider: 285lbs Front Rack 55lbs, Rear Rack 55lbs. Total payload: 395lbs (180kg)
STANDARD FEATURES
Adjustable Kickstand, Water Bottle Bosses
OPTIONAL UPGRADE FEATURES
NCX Suspension Seat Post
WREN Inverted Suspension fork 110mm
