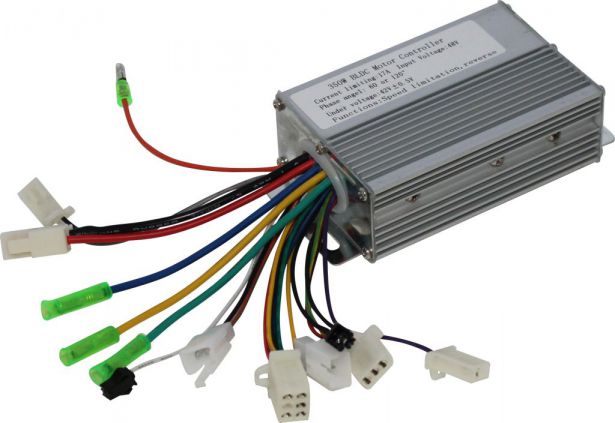

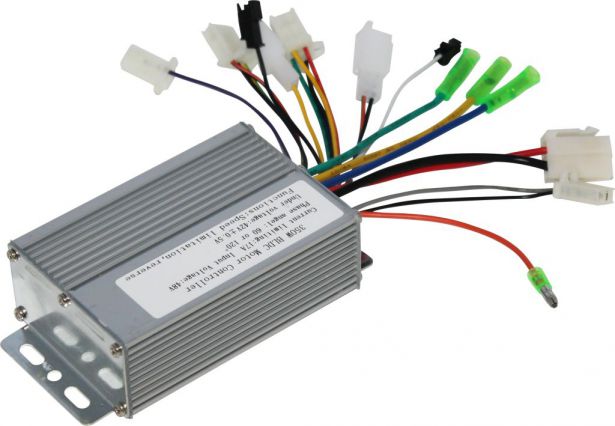

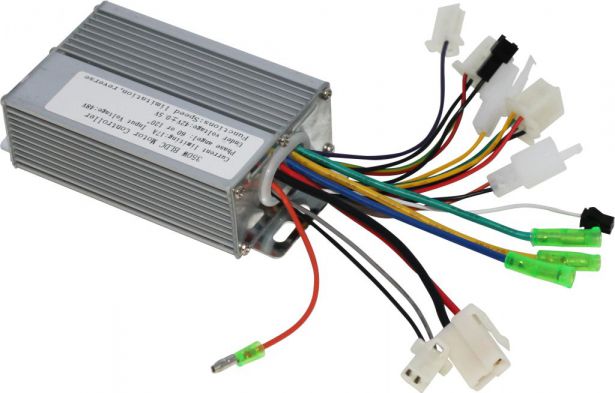

This is a 48V, 17A controller. These types of controllers are commonly (though not exclusively) used for E-bikes, electric scooters and mobility scooters. Most commonly known as the primary controller unit for an array of mobility scooters, like the Gio (Giovanni) MS3 Mobility Scooter or similar variations.Specifications:
Input Voltage: 48V
Wattage: 350W
Current Limiting: 17A
Phase Angle: 60 or 120
Under Voltage Protection: 42V±0.5V
Case Dimensions: 105mm x 70mm x 35mm
Functions: Speed Limitation, Reverse

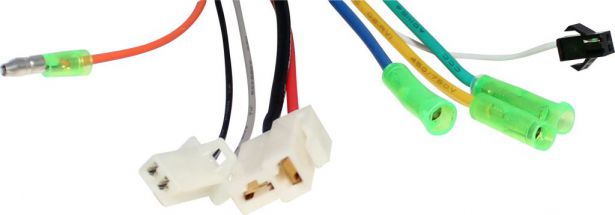

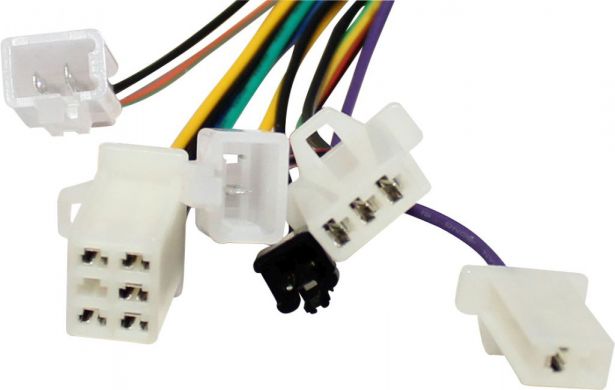

Power: Large Red & Black Wires With Connector
E-Lock: Small Orange Wire With Green/Silver Connector
High Level Brake: Small Yellow Wire with Connector
Low Level Brake: 2 Wire Orange/Green & Black Wire with Connector
Speed Shifting: 3 Wire Yellow, Green & Black with Connector
Soft Studying: 2 Wires Grey & Black Connector
Motor Phases: Green, Blue & Yellow with Green Connectors (individual)
Throttle: 3 Wire Yellow/Green, Red/Black and Black Wires With Connectors
Ignition: Orange Wire
Motor Hall Sensor: 5 wire Yellow, Blue, Green, Red & Black Wires with Connector
